場景應用:為測試材料結構或復合材料,在瞬間下經高溫、低溫的連續環境下所能忍受的程度,適用電工、電子產品、半導體、電子線路板、金屬材料等各種材料在溫度急劇變化環境下的適應性。在研制階段可用于發現產品設計和工藝缺陷,在有些情況下也可用于環境應力篩選,剔除產品的早期故障。試驗的嚴苛程度取決于高低溫范圍,駐留時間,溫度轉換時間,循環數等
To test the degree to which a material structure or composite material can withstand continuous environments of high and low temperatures in an instant, it is suitable for the adaptability of various materials such as electricians, electronic products, semiconductors, electronic circuit boards, metal materials, etc. in rapidly changing temperature environments. During the development phase, it can be used to identify product design and process defects, and in some cases, it can also be used for environmental stress screening to eliminate early product failures. The severity of the test depends on the high and low temperature range, residence time, temperature conversion time, number of cycles
業參考標準 The reference standards are as follows
GB11158-2008高溫試驗箱技術條件
GB10589-2008低溫試驗箱技術條件
GB10592-2008高低溫試驗箱技術條件(溫度交變)
GB/T2423.1-2008電工電子產品環境試驗第2部分:試驗方法 試驗A:低溫(IEC60068-2-1:2007)
GB/T2423.2-2008電工電子產品環境試驗第2部分:試驗方法 試驗B:高溫(IEC60068-2-1:2007)
GB/T2423.22-2002電工電子產品環境試驗第2部分:試驗方法 試驗N:溫度變化(IEC60068-2-14)
GJB150.3A-2009軍用裝備實驗室環境試驗方法第3部分:高溫試驗
GJB150.4A-2009軍用裝備實驗室環境試驗方法第3部分:低溫試驗

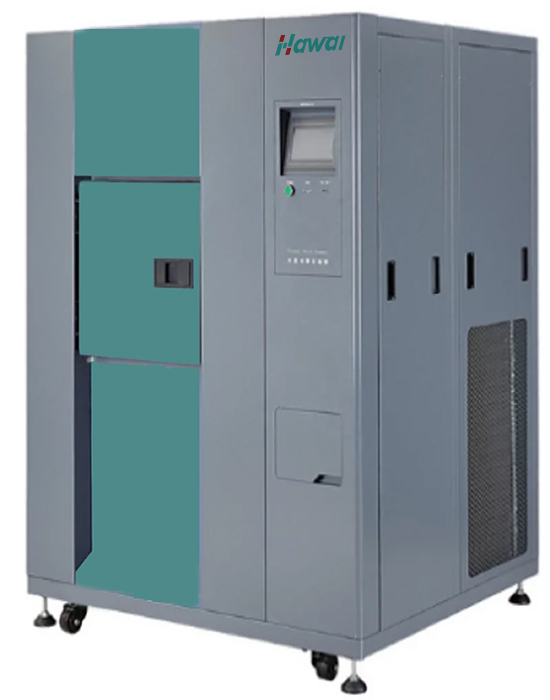

借助于我們的HW-HC系列設備,可以實現從 -70 °C 到 +220 °C 的極快溫度變化。我們提供的解決方案有具有靜態試驗空間的阻尼熱沖擊試驗箱,包括用于三區試驗的環境溫度,或配裝移動提籃的經典垂直兩區熱沖擊試驗箱。可以減少早期故障,提高產品的可靠性、可重復性、認證性和時效性。

智能負載調節,高低溫沖擊1000個循環不結霜,溫度恢復時間快,提高試驗效率,可做高低溫、常溫沖擊試驗。

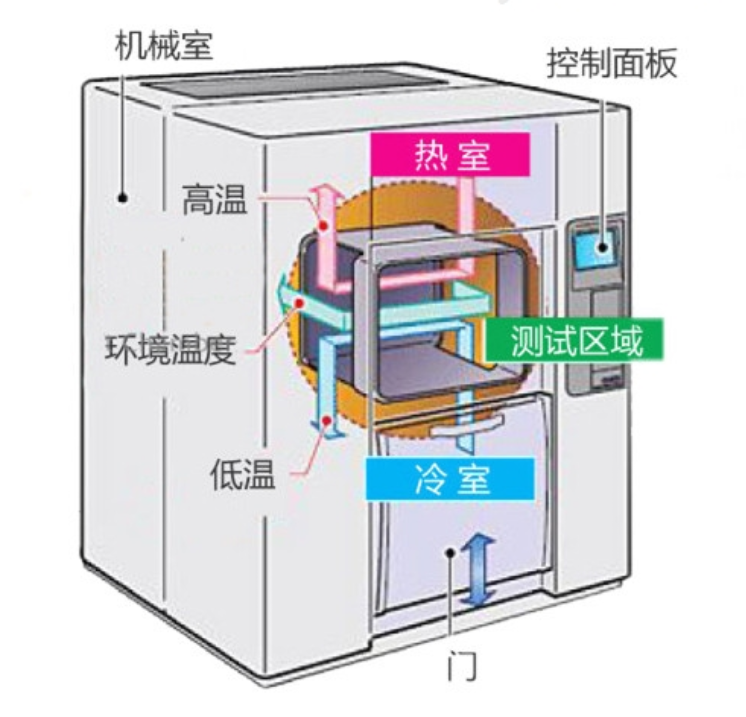

三箱儲能式結構設計,樣品無需移動,易于測試線纜連接,相對靜止,無任何機械沖擊。

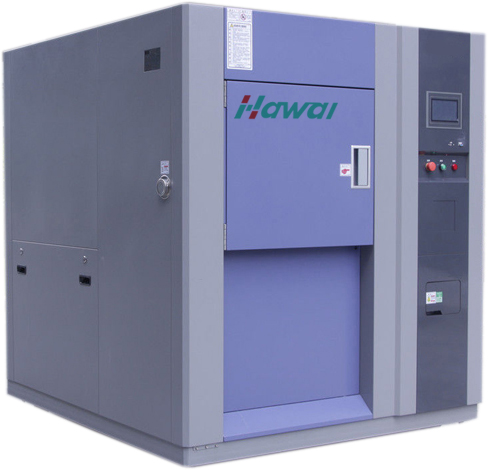

產品可按試樣特點定制三箱(儲能式)、兩箱(提籃式)溫度沖擊箱。
提供HW-HC系列產品目錄 Provide HW-HC series product catalog
